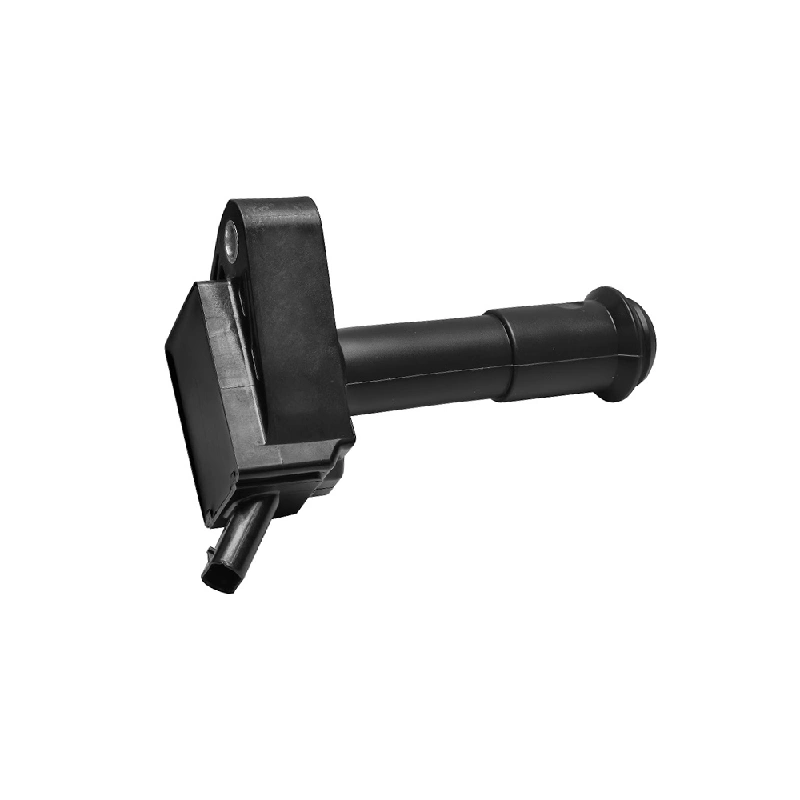

Ignition Coil HX7G12A366AA/HX7G12A366AB UF880
IGNX No: STIC4038
OE No.:
HX7G12A366AA
HX7G12A366AB
SMP :
Inquiry Now >>
UF-880 (UF880)
Product Detail
| ST NO. | Brand | OEM No. | Model(s) & Years | PINS | MODULE |
| STIC4038 | FORD | HX7G12A366AA HX7G12A366AB |
FORD FIESTA 1.5L (2017-2022) FORD FOCUS 1.5L (2018-2022) |
3 PINS | WITH |
This Ford ignition coil is supplied for the listed OE numbers HX7G12A366AA and HX7G12A366AB. It features a 3 pins connector and with-module configuration, so the connector layout, module structure, housing profile, and mounting arrangement are useful reference points when reviewing a replacement coil.
During product comparison, buyers can check the listed OE number together with connector orientation, terminal layout, plug direction, coil body shape, mounting position, and overall dimensions of the original part. Reviewing several structural points together provides a clearer basis for confirmation than relying only on exterior appearance.
Structure and Electrical Inspection Focus
3 Pins Connector
Connector shape, terminal position, locking structure, plug direction, and installation orientation can be compared with the original ignition coil during sample or product review.
With Module Structure
This ignition coil is listed as with module. Module configuration should be considered together with the connector and housing design when confirming the required replacement structure.
Winding & Insulation
Primary and secondary windings, internal insulation, terminals, and electrical connections are common areas considered when evaluating ignition coil construction and electrical condition.
Engine heat, temperature changes, vibration, and repeated electrical loading are common operating conditions around ignition components. Depending on the buyer's inspection requirements, evaluation may include connector and terminal condition, housing and assembly condition, insulation-related characteristics, and relevant electrical measurements.
Sample and Order Specification Review
During sample evaluation, the replacement coil can be compared with the original part for the listed OE number, 3 pins connector, with-module structure, connector orientation, housing profile, and mounting details. Original coil photos or connector close-ups can also provide additional reference when further comparison is required.
For regular purchasing, the reviewed sample and confirmed product structure can serve as reference for later order communication. Packaging method, label information, required quantity, and other project-specific details can be discussed according to the buyer's purchasing requirements.
